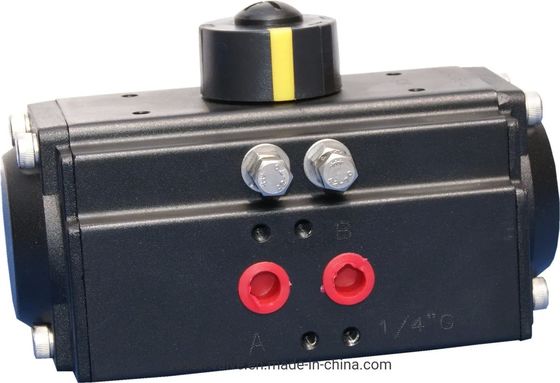

EL-O-Matic Pneumatic Actuator with Hard Anodized Aluminum Body and Epoxy Coated End Caps for Precise Travel Adjustment ±5º
Datos del producto:
Pago y Envío Términos:
| Cantidad de orden mínima: | 1 |
|---|
|
Información detallada |
|||
| Modelo no.: | VS-052 ~ VS-400 | Material del piñón: | Acero de aleación endurecido |
|---|---|---|---|
| Revestimiento del piñón: | Niquelado (más de 15um) | Material del cuerpo del actuador: | Extrusión de aluminio |
| Tratamiento del cuerpo del actuador: | Anodizado duro (más de 30um) | Material del casquillo de extremo: | Aluminio de fundición |
| Tratamiento de tapa final: | Recubierto de epoxi (más de 80 um) | Material de pistón: | Aluminio de fundición |
| Tratamiento del pistón: | Anodizado duro (más de 30um) | Ajuste de viaje: | ±5º en ambas posiciones |
| Material de primavera: | Acero de alta resistencia a la tracción | Recubrimiento de primavera: | Epóxido cubierto |
| Material de rodamiento: | Compuesto muy duradero | Estandarte de montaje: | ISO5211 y DIN3337 |
| Capacidad de producción: | 50000pc / y | ||
| Resaltar: | Hard Anodized Aluminum Pneumatic Actuator,Epoxy Coated Valve Actuator,Travel Adjustment ±5º EL-O-Matic Actuator |
||
Descripción de producto
EL-O-Matic Type Valve Actuator Valve Automation
Key Features and Components
- Indicator Position indicator with Namur mounting for accessory attachment, standard on all VESON pneumatic actuators.
- Pinion Hardened alloy steel pinion precision ground and Nickel plated (over 15μm) for reduced friction and maximum wear resistance. Complies with ISO5211 & DIN3337 standards. Custom dimensions available with stainless steel and aluminum alloy options.
- Actuator Body Hard anodized aluminum extrusion (over 30μm) for wear and corrosion protection with minimized piston friction. Optional Epoxy Coated and PTFE Coated treatments available.
- End Cap Epoxy coated (over 80μm) die casting aluminum end caps for maximum corrosion resistance. PTFE Coated treatment available as an option.
- Piston Precisely balanced, hard anodized (over 30μm) die casting aluminum piston with high-quality guides. Twin rack and pinion design ensures constant torque output.
- Travel Adjustment Standard ±5° adjustment in both open and closed positions via easily accessible external adjustment bolts.
- High Performance Springs Epoxy coated high tensile steel springs for corrosion resistance and extended service life. Pre-loaded design allows safe, rapid disassembly.
- Bearings & Guides Highly durable compound material provides high thrust stability with minimal friction for long operational life.

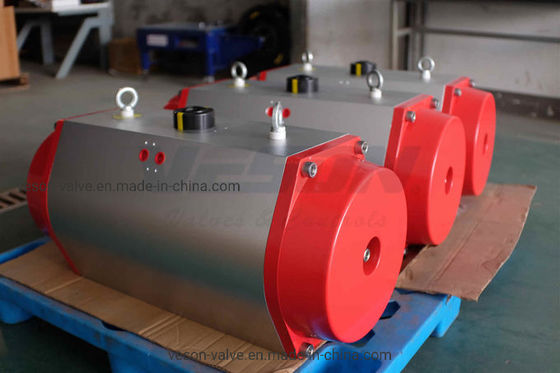

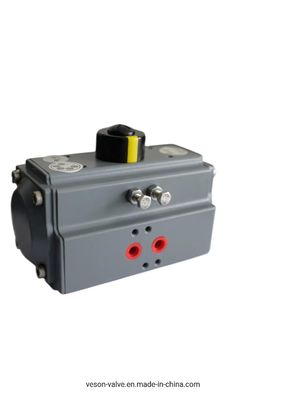

Product Images
