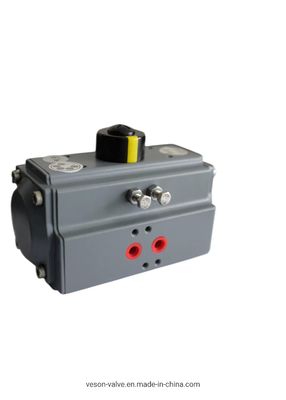

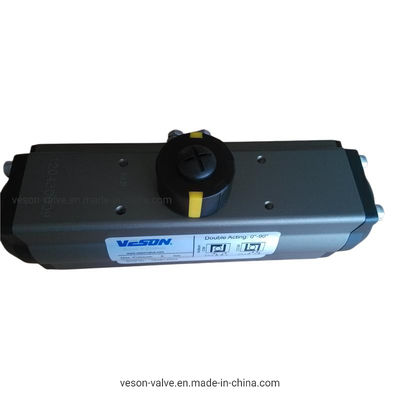

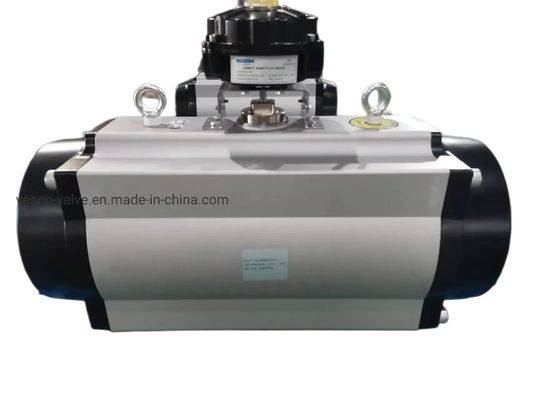

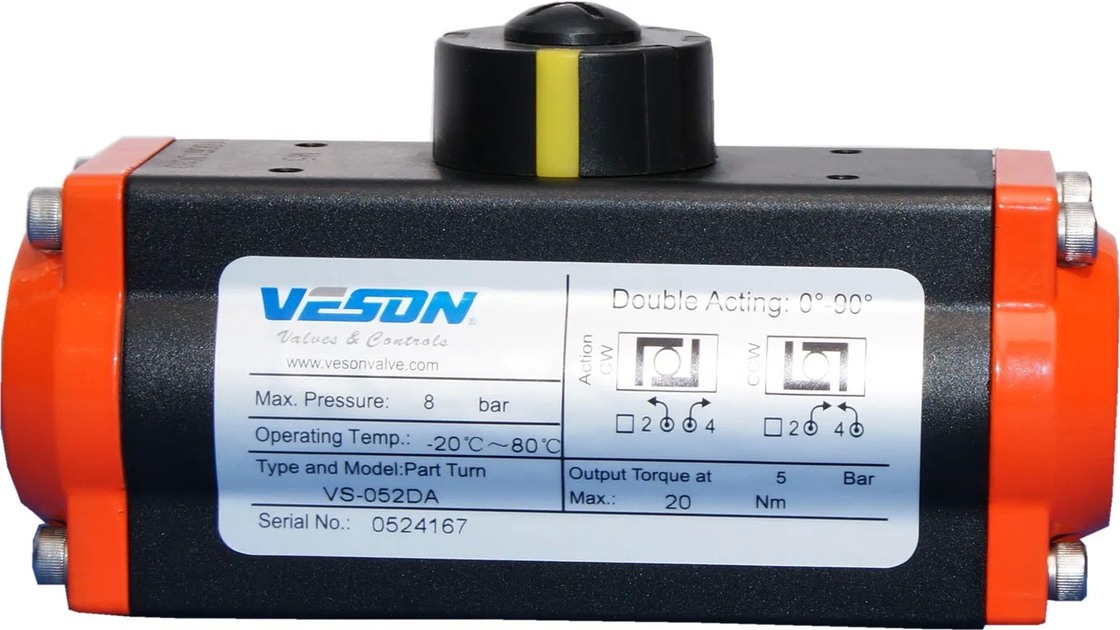

CE and SGS Certified Pneumatic Actuator with Namur Mounting for Industrial Applications
Datos del producto:
Pago y Envío Términos:
| Cantidad de orden mínima: | 1 |
|---|
|
Información detallada |
|||
| Modelo no.: | VS-052 ~ VS-400 | Formulario adaptado: | Tipo que cambia |
|---|---|---|---|
| Tipo de trabajo: | Giratorio | Presión: | Presión media |
| Temperatura laboral: | Temperatura normal | Tipo de actuación: | Actuación doble |
| Material: | Aluminio | Estructura: | Estantería y piñón |
| Actuador giratorio: | Accionamiento neumático | Material del piñón: | Acero de aleación endurecido |
| Revestimiento del piñón: | Niquelado (más de 15um) | Recubrimiento del cuerpo del actuador: | Anodizado duro (más de 30um) |
| Recubrimiento de tapa final: | Recubierto de epoxi (más de 80 um) | Revestimiento del pistón: | Anodizado duro (más de 30um) |
| Ajuste de viaje: | ±5º en ambas posiciones | ||
| Resaltar: | CE Certified Pneumatic Actuator,SGS Certified Pneumatic Actuator,Namur Mounting Pneumatic Actuator |
||
Descripción de producto
Pneumatic Actuator China Manufacturer
Position Indicator
A position indicator with Namur mounting is standard on all VESON pneumatic actuators for mounting accessories.
Precision Pinion
Hardened alloy steel pinion is precision ground and Nickel plated (over 15μm) to reduce friction and provide maximum wear resistance. Fully conforms with ISO5211 & DIN3337 standards. Custom dimensions available with stainless steel and aluminum alloy options.
Durable Actuator Body
Hard anodized aluminum extrusion (over 30μm) protects against wear and corrosion while minimizing piston friction. Optional Epoxy Coated and PTFE Coated treatments available.
Corrosion-Resistant End Cap
Epoxy coated (over 80μm) die casting aluminum end caps provide maximum resistance against corrosive elements. PTFE Coated treatments also available.
Precision Piston
Precisely balanced, hard anodized (over 30μm) die casting aluminum piston with high quality guides. Twin rack and pinion design ensures constant torque output.
Adjustable Travel
Standard adjustment of ±5° in both open and closed positions through easily accessible external adjustment bolts.
High Performance Springs
High tensile steel springs with epoxy coating for corrosion resistance and extended service life. Pre-loaded springs can be safely and rapidly disassembled.
Premium Bearings & Guides
Highly durable compound material provides high thrust stability with minimum friction for long operational life.
