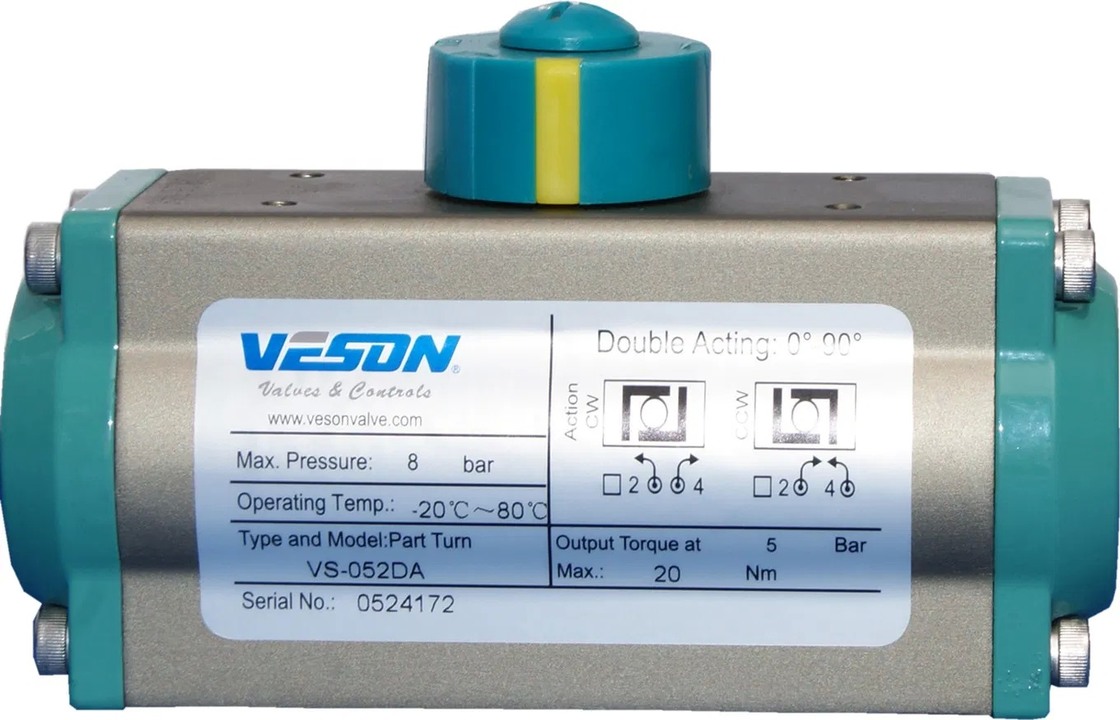

ISO5211 DIN3337 Standard Hard Anodized Aluminum Pneumatic Air Actuator with Double-acting Cylinder
Datos del producto:
Pago y Envío Términos:
| Cantidad de orden mínima: | 1 |
|---|
|
Información detallada |
|||
| Modelo no.: | VS-052 ~ VS-400 | Fuerza: | Neumático |
|---|---|---|---|
| Dirección de la presión: | cilindro de doble acción | Material del piñón: | Acero de aleación endurecido |
| Revestimiento del piñón: | Niquelado (más de 15um) | Material del cuerpo del actuador: | Extrusión de aluminio |
| Tratamiento del cuerpo del actuador: | Anodizado duro (más de 30um) | Material del casquillo de extremo: | Aluminio de fundición |
| Tratamiento de tapa final: | Recubierto de epoxi (más de 80 um) | Material de pistón: | Aluminio de fundición |
| Tratamiento del pistón: | Anodizado duro (más de 30um) | Ajuste de viaje: | ± 5º |
| Material de primavera: | Acero de alta resistencia a la tracción | Tratamiento de primavera: | Epóxido cubierto |
| Material de rodamiento: | Compuesto muy duradero | ||
| Resaltar: | ISO5211 Standard Pneumatic Actuator,DIN3337 Standard Air Actuator,Hard Anodized Pneumatic Air Actuator |
||
Descripción de producto
Actreg Type Aluminum Pneumatic Actuator
Position Indicator
Features a position indicator with Namur mounting for easy accessory attachment, standard on all VESON pneumatic actuators.
Precision Pinion
- Hardened alloy steel construction with precision grinding
- Nickel plated (over 15μm) for reduced friction and maximum wear resistance
- Fully compliant with ISO5211 & DIN3337 standards
- Customizable dimensions available
- Optional materials: stainless steel and aluminum alloy
Durable Actuator Body
Constructed from hard anodized (over 30μm) aluminum extrusion for superior wear and corrosion resistance while minimizing piston friction.
Optional coatings: Epoxy Coated and PTFE Coated versions available.
Robust End Caps
Epoxy coated (over 80μm) die-cast aluminum end caps provide exceptional resistance against corrosive elements.
Optional treatments include PTFE Coating.
Precision Piston
- Precisely balanced die-cast aluminum construction
- Hard anodized treatment (over 30μm) for durability
- Fitted with high-quality guides
- Twin rack and pinion design ensures constant torque output
Adjustable Travel
Standard adjustment of ±5° in both open and closed positions via easily accessible external adjustment bolts.
High Performance Springs
- High tensile steel construction with epoxy coating for corrosion resistance
- Extended service life
- Pre-loaded design for safe and rapid disassembly
Premium Bearings & Guides
Highly durable compound material provides exceptional thrust stability with minimal friction for extended operational life.
