Precision Engineered Medium Pressure Low Temperature Pneumatic Rack and Pinion Actuator for Valve Actuation
Datos del producto:
Pago y Envío Términos:
| Cantidad de orden mínima: | 1 |
|---|
|
Información detallada |
|||
| Modelo no.: | VS-052 ~ VS-400 | Formulario adaptado: | Tipo que cambia |
|---|---|---|---|
| Tipo de trabajo: | Giratorio | Presión: | Presión media |
| Temperatura laboral: | Baja temperatura | Tipo de actuación: | Actuación doble |
| Material: | Aluminio | Estructura: | Estantería y piñón |
| Fuente de energía: | Neumático | Tipo de producto: | Actuador neumático de piñón y cremallera |
| Actuación: | Cuarto turno | Tipo de control: | encendido/apagado, Posicionamiento, Modulación, ESD |
| Tipo de válvula: | Bola, Mariposa, Tapón y Cualquier Otro Cuarto de Vuelta | Temperatura de funcionamiento: | -20 ° C a +80 ° C (-4 ° F a +176 ° F) |
| Esfuerzo de torsión: | 12 Nm a 6000 Nm | Presión de funcionamiento: | 8,3 barras / 120 psi |
| Resaltar: | Precision Engineered Pneumatic Actuator,Medium Pressure Rack and Pinion Actuator,Low Temperature Valve Actuation System |
||
Descripción de producto
Precision Engineered Rack and Pinion Valve Actuation Systems
Crafted for excellence, the Veson VS series actuator delivers unparalleled performance across diverse quarter-turn valve applications. Featuring a robust powder coating and innovative high corrosion-resistant aluminum pinion design with stainless steel fasteners, this actuator offers unmatched durability for long-term reliability.
Key Features
- Hard anodized high-grade aluminum pinion for superior corrosion resistance
- Modular construction for easy alterations between spring/action settings
- Dual valve flange drilling patterns and interchangeable drive inserts
- NAMUR interface standard for seamless accessory integration
- Dual stroke adjustment to prevent premature valve failures
- Standardized components for quick delivery in common configurations
Technical Specifications
| Power Source | Pneumatic |
|---|---|
| Product Type | Pneumatic Rack and Pinion Actuator |
| Actuation | Quarter-turn |
| Control Type | On/Off, Positioning, Modulating, Emergency Shutdown (ESD) |
| Valve Type | Ball, Butterfly, Plug, and other quarter-turn applications |
| Operating Temperature | -20°C to +80°C (-4°F to +176°F), with optional adjustments |
| Torque Range | 12 Nm to 6000 Nm (18 sizes available) |
| Operating Pressure | Up to 8.3 bar / 120 psi |
Available in both single and double acting configurations across 18 sizes, with torque capabilities from 12 Nm to 6000 Nm. Designed for simple installation and years of reliable performance with a "fit and forget" approach.

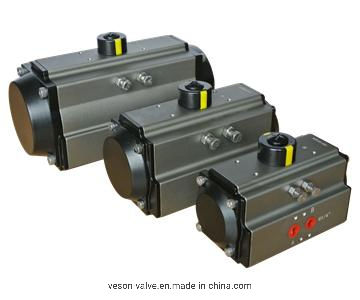

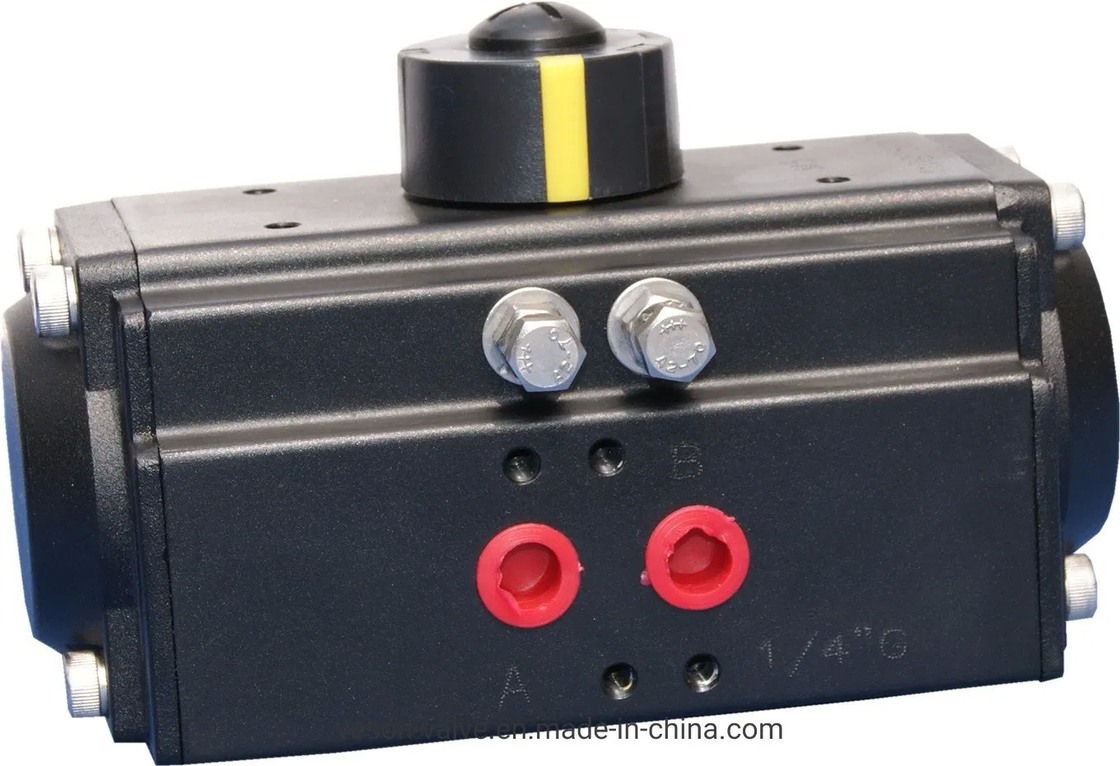

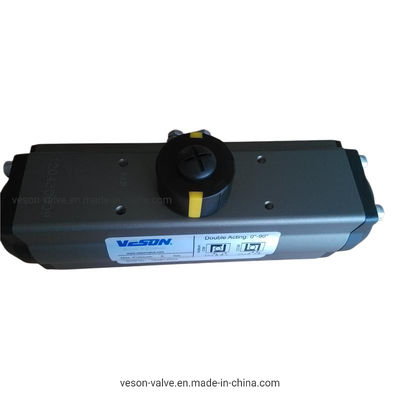

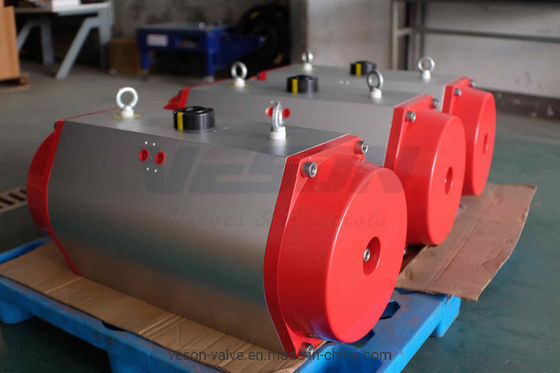

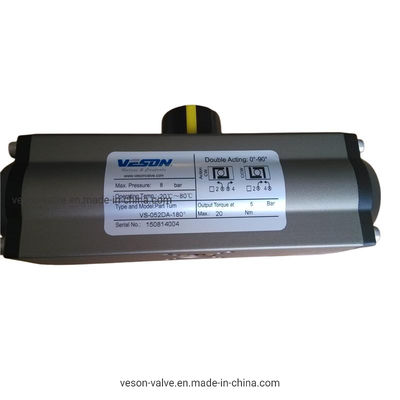

Product Images
