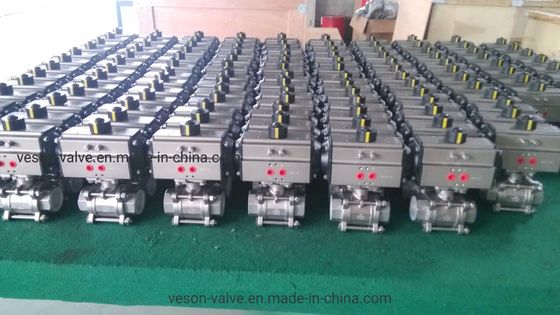

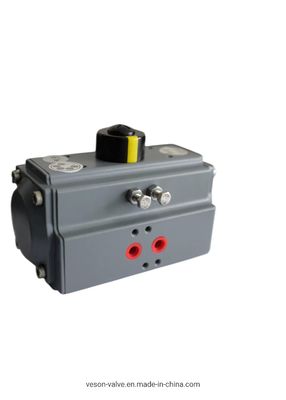

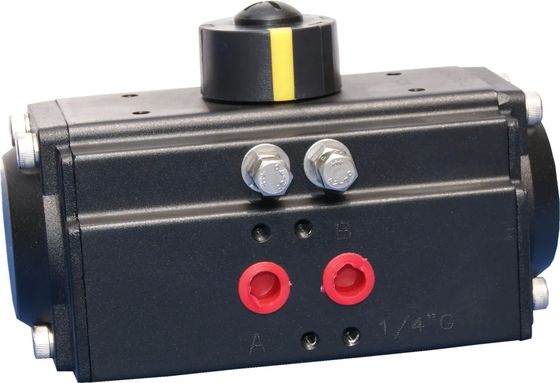

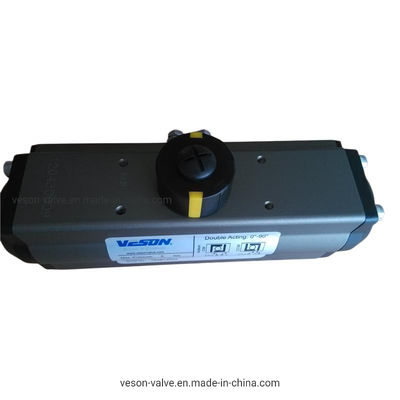

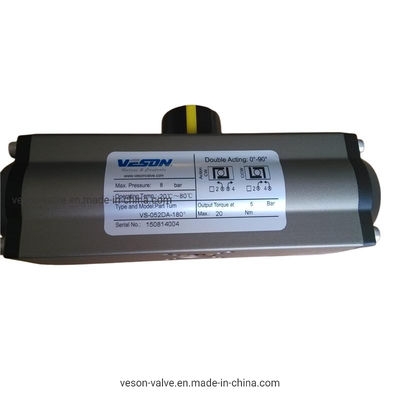

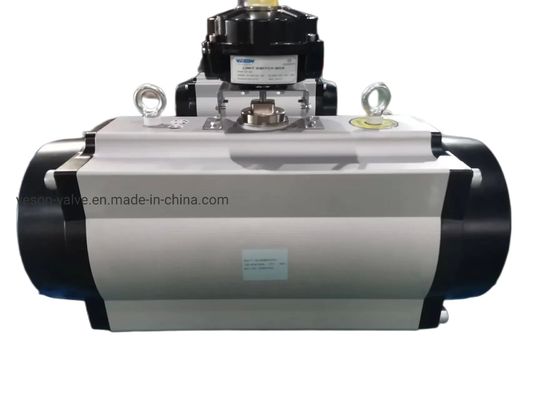

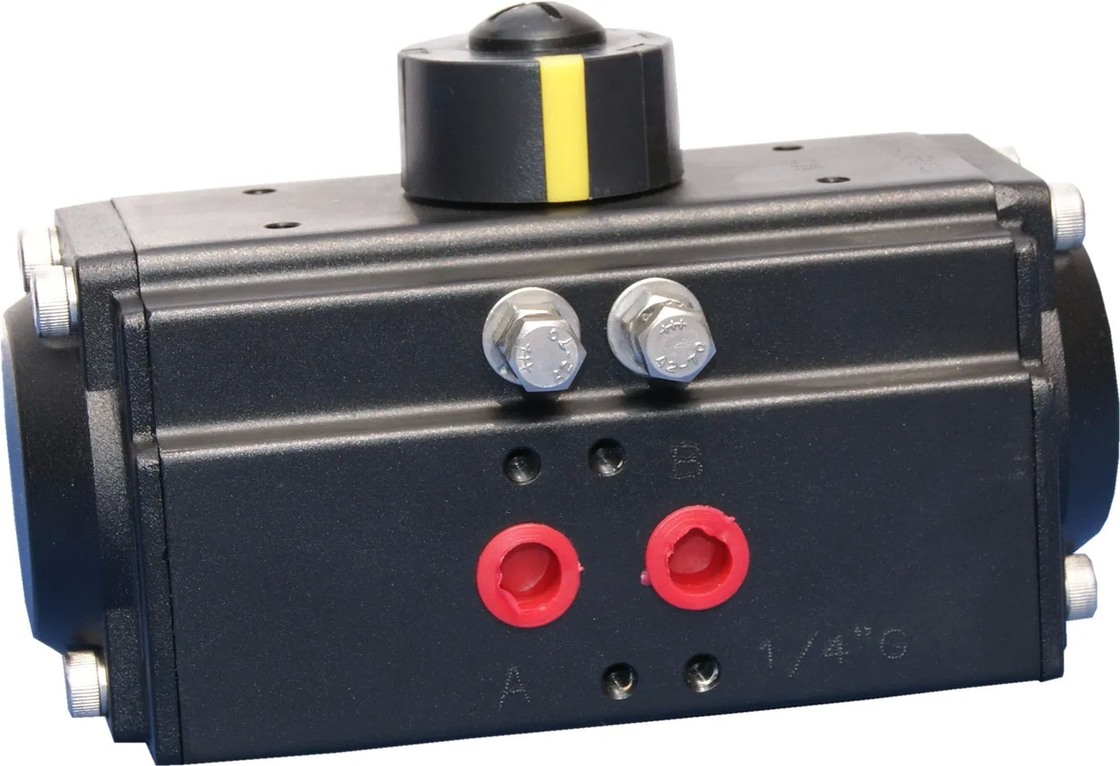

Hard Anodized Aluminum Pneumatic Cylinder with Epoxy Coated End Caps and Travel Adjustment ±5º
Datos del producto:
Pago y Envío Términos:
| Cantidad de orden mínima: | 1 |
|---|
|
Información detallada |
|||
| Modelo no.: | VS-052 ~ VS-400 | Fuerza: | Neumático |
|---|---|---|---|
| Dirección de la presión: | cilindro de doble acción | Material del piñón: | Acero de aleación endurecido |
| Revestimiento del piñón: | Niquelado (más de 15um) | Material del cuerpo del actuador: | Extrusión de aluminio |
| Tratamiento del cuerpo del actuador: | Anodizado duro (más de 30um) | Material del casquillo de extremo: | Aluminio de fundición |
| Tratamiento de tapa final: | Recubierto de epoxi (más de 80 um) | Material de pistón: | Aluminio de fundición |
| Tratamiento del pistón: | Anodizado duro (más de 30um) | Ajuste de viaje: | ±5º en ambas posiciones |
| Material de primavera: | Acero de alta resistencia a la tracción | Recubrimiento de primavera: | Epóxido cubierto |
| Material de rodamiento: | Compuesto muy duradero | ||
| Resaltar: | Hard Anodized Aluminum Pneumatic Cylinder,Epoxy Coated Pneumatic Cylinder,Travel Adjustment ±5º Pneumatic Cylinder |
||
Descripción de producto
China Manufacturer Pneumatic Cylinder
Product Features
- Indicator: A position indicator with Namur mounting is included on all VESON pneumatic actuators for mounting accessories.
- Pinion: Features a hardened alloy steel pinion that is precision ground and Nickel plated (over 15μm) to reduce friction and provide maximum wear resistance. Fully conforms with ISO5211 & DIN3337 standards. Custom dimensions available with stainless steel and aluminum alloy options.
- Actuator Body: Constructed with hard anodized (over 30μm) aluminum extrusion for wear and corrosion protection while minimizing piston friction. Epoxy Coated and PTFE Coated options available.
- End Cap: Made from epoxy coated (over 80μm) die casting aluminum for maximum resistance against corrosive elements. PTFE Coated treatment available as an option.
- Piston: Precisely balanced with hard anodized treatment (over 30μm) die casting aluminum piston fitted with high-quality guides. Twin rack and pinion design ensures constant torque output.
- Travel Adjustment: Standard adjustment of ±5° in both open and closed positions through easily accessible external adjustment bolts.
- High Performance Springs: High tensile steel springs with epoxy coating for corrosion resistance and extended service life. Pre-loaded springs can be safely and rapidly disassembled.
- Bearings & Guides: Highly durable compound material provides high thrust stability with minimum friction and long operational life.
