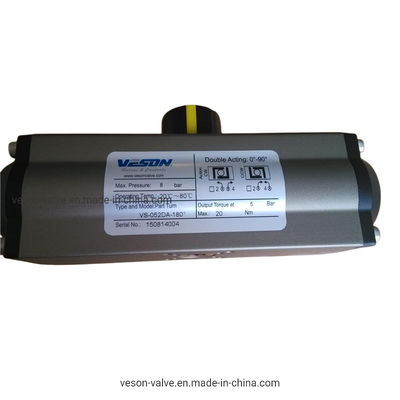

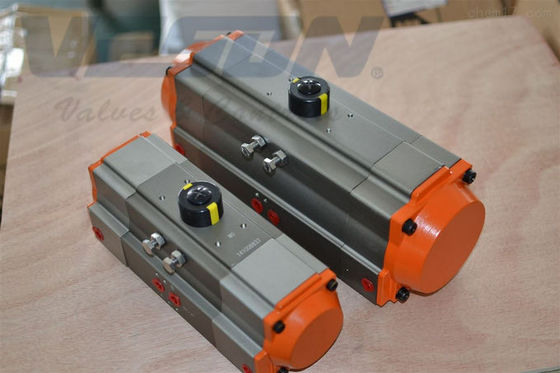

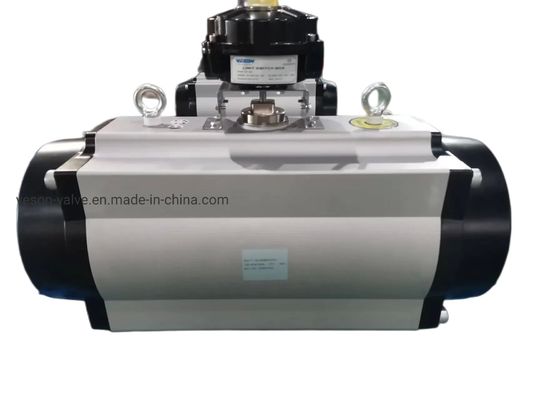

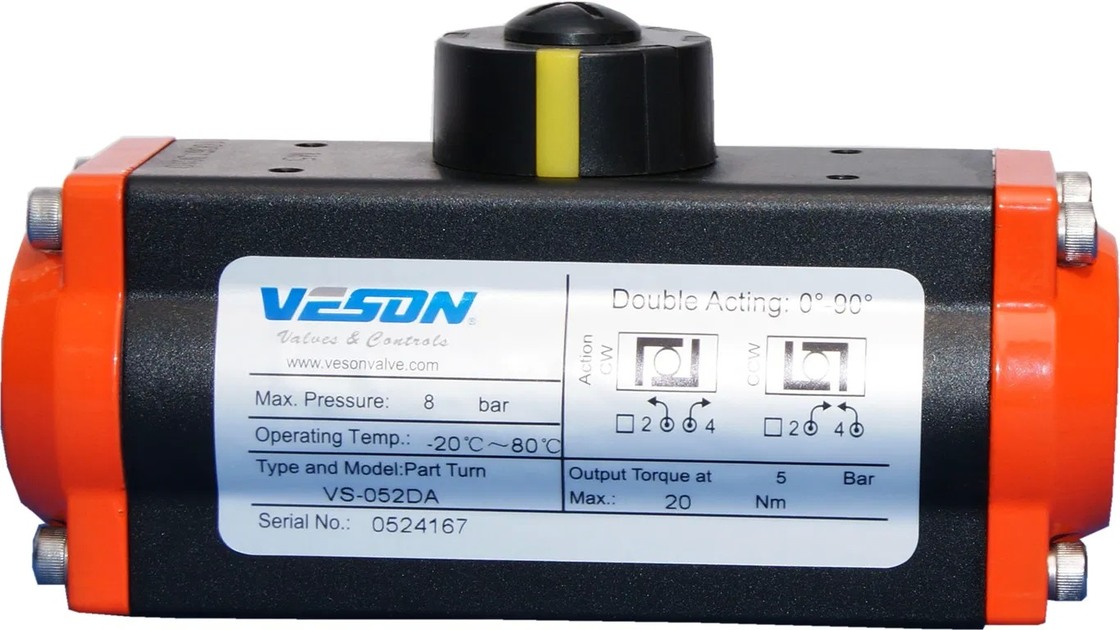

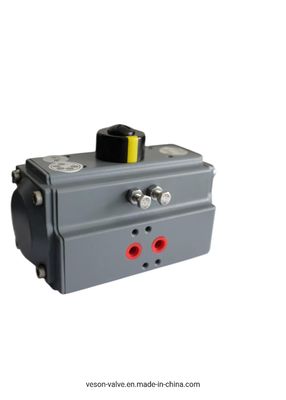

ISO5211 & DIN3337 Standard CE & SGS Certified VS-052~VS-400 Model Pneumatic Actuator Valve Actuator
Datos del producto:
Pago y Envío Términos:
| Cantidad de orden mínima: | 1 |
|---|
|
Información detallada |
|||
| Modelo no.: | VS-052 ~ VS-400 | Formulario adaptado: | Onoff |
|---|---|---|---|
| Tipo de trabajo: | Giratorio | Presión: | Presión media |
| Temperatura laboral: | Temperatura normal | Tipo de actuación: | Actuación doble |
| Material: | Aluminio | Estructura: | Estantería y piñón |
| Material del piñón: | Acero de aleación endurecido | Revestimiento del piñón: | Niquelado (más de 15um) |
| Recubrimiento del cuerpo del actuador: | Anodizado duro (más de 30um) | Recubrimiento de tapa final: | Recubierto de epoxi (más de 80 um) |
| Revestimiento del pistón: | Anodizado duro (más de 30um) | Ajuste de viaje: | ± 5º |
| Recubrimiento de primavera: | Epóxido cubierto | ||
| Resaltar: | ISO5211 & DIN3337 Standard Pneumatic Actuator,CE & SGS Certified Valve Actuator,VS-052~VS-400 Model Pneumatic Actuator |
||
Descripción de producto
Valve Pneumatic Actuator Pneumatic Drive Actuated Solution
High-performance pneumatic actuator solution designed for industrial valve applications, featuring durable construction and precision engineering.
Key Features
- Position Indicator: Equipped with Namur mounting for accessory installation.
- Precision Pinion: Hardened alloy steel with nickel plating (over 15μm) for reduced friction and maximum wear resistance. Compliant with ISO5211 & DIN3337 standards. Custom dimensions available with stainless steel or aluminum alloy options.
- Durable Actuator Body: Hard-anodized aluminum extrusion (over 30μm) for corrosion protection and minimal piston friction. Optional epoxy or PTFE coatings available.
- Corrosion-Resistant End Caps: Epoxy-coated die-cast aluminum (over 80μm) with optional PTFE coating.
- Precision Piston: Hard-anodized die-cast aluminum (over 30μm) with high-quality guides and twin rack-and-pinion design for consistent torque output.
- Adjustable Travel: ±5° adjustment in both open and closed positions via external adjustment bolts.
- High-Performance Springs: Epoxy-coated high-tensile steel for corrosion resistance and extended service life. Designed for safe, rapid disassembly.
- Premium Bearings & Guides: Durable compound material for high thrust stability with minimal friction and long operational life.
Quiere saber más detalles sobre este producto
