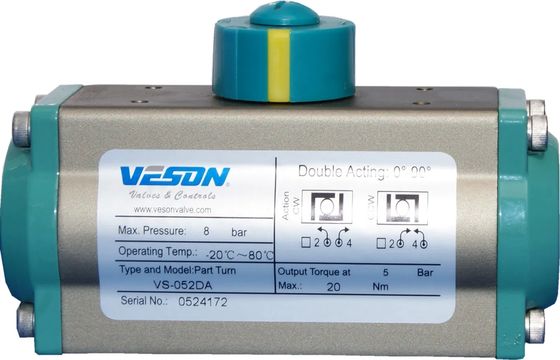

Pneumatic Actuator with Travel Adjustment ±5º Position Indicator and High Performance Springs for Valve Control
Datos del producto:
Pago y Envío Términos:
| Cantidad de orden mínima: | 1 |
|---|
|
Información detallada |
|||
| Modelo no.: | VS-052 ~ VS-400 | Tipo de trabajo: | Giratorio |
|---|---|---|---|
| Presión: | Presión media | Temperatura laboral: | Temperatura normal |
| Material: | Aluminio | Material del piñón: | Acero de aleación endurecido |
| Revestimiento del piñón: | Niquelado (más de 15um) | Recubrimiento del cuerpo del actuador: | Anodizado duro (más de 30um) |
| Recubrimiento de tapa final: | Recubierto de epoxi (más de 80 um) | Revestimiento del pistón: | Anodizado duro (más de 30um) |
| Ajuste de viaje: | ± 5º | Material de los resortes: | Acero de alta resistencia a la tracción |
| Recubrimiento de resortes: | Epóxido cubierto | Material de rodamiento: | Compuesto muy duradero |
| Capacidad de producción: | 50000pc / y | ||
| Resaltar: | Travel Adjustment ±5º Pneumatic Actuator,Position Indicator Pneumatic Air Actuator,High Performance Springs Rotary Actuator |
||
Descripción de producto
Pneumatic Actuator Cylinder Pneumatic Valve Control
Product Features
- Indicator: Position indicator with Namur mounting for accessory attachment
- Pinion: Hardened alloy steel pinion, precision ground and nickel plated (over 15μm) for reduced friction and maximum wear resistance. Complies with ISO5211 & DIN3337 standards. Custom dimensions available with stainless steel and aluminum alloy options.
- Actuator Body: Hard anodized aluminum extrusion (over 30μm) for wear and corrosion protection with minimal piston friction. Optional Epoxy Coated and PTFE Coated treatments available.
- End Cap: Epoxy coated (over 80μm) die casting aluminum for maximum corrosion resistance. PTFE Coated options available.
- Piston: Precisely balanced, hard anodized (over 30μm) die casting aluminum with high-quality guides. Twin rack and pinion design ensures constant torque output.
- Travel Adjustment: Standard ±5° adjustment in both open and closed positions via easily accessible external bolts.
- High Performance Springs: Epoxy coated high tensile steel for corrosion resistance and extended service life. Pre-loaded springs allow safe, rapid disassembly.
- Bearings & Guides: Highly durable compound material provides stable thrust with minimal friction and long service life.
