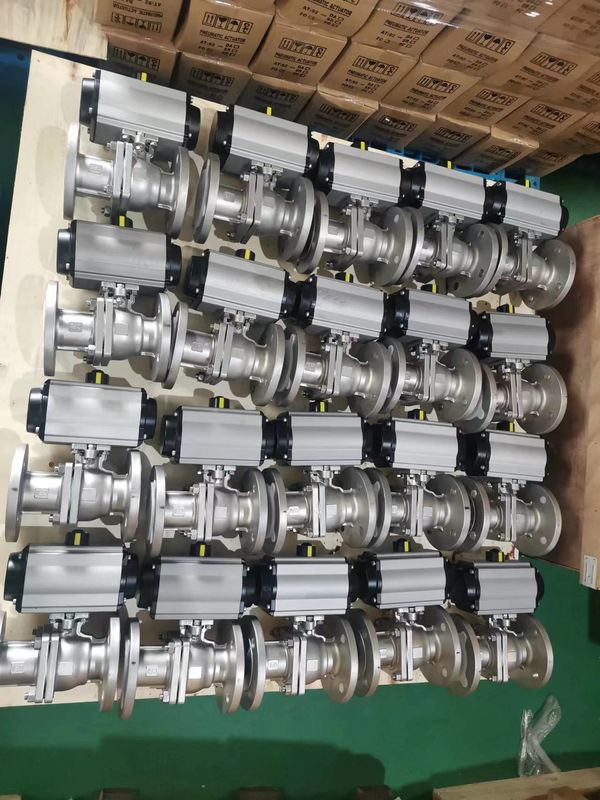

Valve Automation 3 Position Pneumatic Actuator Pneumatic Actuator Suitable for High Demand Valve Automation Applications
Datos del producto:
Mejor precio Contacto|
Información detallada |
|||
| Material: | Aleación de aluminio | Tiempo de respuesta: | 0,1-0,5 segundos |
|---|---|---|---|
| actuatorType: | Neumático | Rango de torsión: | 10-500 Nm |
| Tipo de conexión: | Brida ISO 5211 | Tipo de control: | Control de 3 posiciones |
| Material de sellado: | NBR (Caucho de Nitrilo) | Tipo de montaje: | Estándar NAMUR |
| Resaltar: | 3 position pneumatic actuator for valves,high demand valve automation actuator,pneumatic actuator for valve automation |
||
Descripción de producto
Product Description:
The 3 Position Pneumatic Actuator is a highly reliable and efficient device designed specifically for valve automation applications. As a pneumatic actuator, it utilizes compressed air to generate mechanical motion, making it an ideal choice for industries that require precise and robust control of valve positions. This actuator is engineered with a 3 position control type, enabling it to accurately position valves at three distinct points, which enhances operational flexibility and process control.
One of the key features of this 3 Position Pneumatic Actuator is its quarter turn function. This means the actuator is designed to rotate the valve shaft by 90 degrees, a motion that is essential for operating quarter turn valves such as ball valves, butterfly valves, and plug valves. The quarter turn functionality ensures quick and precise valve positioning, which is crucial for maintaining optimal flow control in various industrial processes.
Durability and reliability are paramount in valve automation systems, and this actuator excels in both areas due to its high-quality materials. The sealing material used in this actuator is NBR (Nitrile Rubber), which offers excellent resistance to wear, oil, and various chemicals. NBR seals help maintain airtight performance, preventing air leakage and ensuring consistent actuator operation even in demanding environments. This contributes to the longevity and low maintenance requirements of the actuator, making it a cost-effective solution for industrial automation.
In modern valve automation setups, precise control and feedback are essential. This 3 Position Pneumatic Actuator can be seamlessly integrated with an Electro Pneumatic Positioner or Electropneumatic Positioner. These positioners serve as intelligent control devices that convert electrical signals into pneumatic outputs, allowing for accurate positioning of the actuator based on control system commands. The combination of the actuator and electropneumatic positioner enhances the overall system's accuracy, responsiveness, and efficiency.
Electro Pneumatic Positioners are especially beneficial in applications where precise valve positioning is critical to maintaining process parameters such as flow rate, pressure, and temperature. By incorporating an electropneumatic positioner with the 3 Position Pneumatic Actuator, operators can achieve smooth and repeatable valve movements, reduce hysteresis, and improve process stability. The positioner also provides valuable feedback to the control system, enabling real-time monitoring and diagnostics.
The 3 Position Pneumatic Actuator is widely used across various industries, including oil and gas, chemical processing, water treatment, power generation, and manufacturing. Its ability to provide reliable quarter turn motion combined with the versatility of three-position control makes it a preferred choice for automating valves that require intermediate positioning states rather than simple open or closed positions. This capability allows for more nuanced control strategies, improving overall process efficiency and safety.
Installation and integration of this actuator into existing valve systems are straightforward, thanks to its standardized design and compatibility with common valve types. Maintenance is also simplified due to the robust construction and the use of NBR seals, which reduce the frequency of seal replacements and minimize downtime. Additionally, the actuator’s pneumatic operation ensures it remains safe and effective in hazardous environments where electrical devices may pose risks.
In summary, the 3 Position Pneumatic Actuator is a vital component in modern valve automation, offering precise and reliable control through its quarter turn operation and three-position control capability. Its use of durable NBR sealing material ensures long-lasting performance, while its compatibility with Electro Pneumatic Positioners or Electropneumatic Positioners significantly enhances control accuracy and feedback. This actuator is an excellent solution for industries seeking efficient, adaptable, and trustworthy valve automation technology.
Features:
- 3 Position Pneumatic Actuator with precise control for multi-position applications
- Double Acting Pneumatic Actuator design for reliable and efficient operation
- Connection type: ISO 5211 Flange for easy and standardized mounting
- Torque range from 10 to 500 Nm, suitable for various valve sizes and requirements
- Surface treatment: Anodized finish for enhanced durability and corrosion resistance
- Mounting type: NAMUR Standard, compatible with a wide range of accessories
- Equipped to integrate with Electro Pneumatic Positioner for precise positioning and control
Technical Parameters:
| Product Name | 3 Position Pneumatic Actuator |
| Torque Range | 10-500 Nm |
| Positions | 3 |
| Seal Material | NBR (Nitrile Rubber) |
| Surface Treatment | Anodized |
| Mounting Type | NAMUR Standard |
| Application | Valve Automation |
| Control Type | 3 Position Control |
| Connection Type | ISO 5211 Flange |
| Response Time | 0.1-0.5 Seconds |
Applications:
The 3 Position Pneumatic Actuator is an essential component designed for precise control in various industrial automation applications. Featuring a robust ISO 5211 flange connection type, this actuator ensures easy and secure mounting to valves and other equipment, providing reliable performance and simplified installation. Its quarter turn actuator function allows for rapid and accurate 90-degree rotation, making it ideal for applications that require swift switching between open, closed, and intermediate positions.
One of the standout features of this Double Acting Pneumatic Actuator is its 3 position control type, which enables more nuanced control over valve positioning compared to simple on/off actuators. This makes the 3 Position Pneumatic Actuator particularly suitable for processes where intermediate valve positions are necessary to regulate flow, pressure, or temperature with greater precision. The actuator’s pneumatic operation ensures smooth and responsive movement, which is critical for maintaining process stability in dynamic industrial environments.
Designed according to NAMUR standard mounting type, the actuator is compatible with a wide range of valve accessories such as solenoid valves, limit switches, and positioners, facilitating seamless integration into existing control systems. This standardization also simplifies maintenance and replacement, reducing downtime and operational costs.
The versatility of the 3 Position Pneumatic Actuator makes it suitable for a variety of application occasions and scenarios. In the oil and gas industry, it can be used to control the flow of crude oil, natural gas, or refined products through pipelines, ensuring safe and efficient operation. In chemical processing plants, it helps regulate the mixing and transfer of chemicals by providing precise valve positioning. Water treatment facilities benefit from its reliable modulation capabilities for controlling water flow and treatment processes.
Furthermore, the 3 Position Pneumatic Actuator is widely used in food and beverage manufacturing, pharmaceuticals, and HVAC systems, where precise control of valves is crucial for maintaining product quality and system efficiency. The actuator’s double acting design allows it to exert force in both directions, enhancing operational flexibility and reliability under varying pressure conditions.
Overall, the 3 Position Pneumatic Actuator offers a combination of durability, precision, and adaptability, making it an indispensable tool for industries requiring advanced valve control solutions. Its ISO 5211 flange connection, quarter turn functionality, 3 position control, pneumatic operation, and NAMUR standard mounting collectively contribute to its outstanding performance across a broad spectrum of industrial applications.
Customization:
Our 3 Position Pneumatic Actuator is crafted from high-quality aluminum alloy, ensuring durability and lightweight performance. Designed specifically for valve automation, this pneumatic actuator offers precise control with a rapid response time of 0.1-0.5 seconds.
We provide customization services to integrate advanced Electro Pneumatic Positioners or Electropneumatic Positioners with the 3 Position Pneumatic Actuator, enhancing its accuracy and reliability in various industrial applications.
Whether you require tailored specifications for material, response time, or integration with control systems, our customization options for the 3 Position Pneumatic Actuator ensure optimal performance to meet your unique valve automation needs.
Support and Services:
Our 3 Position Pneumatic Actuator is designed for reliable and precise control in various industrial applications. For product technical support, we provide comprehensive assistance including installation guidance, troubleshooting, and maintenance tips to ensure optimal performance.
Our technical support team is equipped to help you with actuator configuration, integration with control systems, and addressing any operational issues. We recommend regular inspection and servicing to maintain actuator efficiency and extend its service life.
In addition to technical support, we offer a range of services such as custom actuator modifications, performance testing, and training sessions for your maintenance personnel to maximize the benefits of your pneumatic actuator system.
For detailed product manuals, software updates, and FAQs, please refer to our online resource center. We are committed to providing timely and effective support to meet your pneumatic actuator needs.
FAQ:
Q1: What is a 3 Position Pneumatic Actuator?
A 3 Position Pneumatic Actuator is a device that controls the movement of valves or other mechanical components by using compressed air. It can position the output shaft in three distinct positions, allowing for more precise control compared to standard two-position actuators.
Q2: What are the typical applications of a 3 Position Pneumatic Actuator?
This actuator is commonly used in industrial automation, HVAC systems, water treatment plants, and manufacturing processes where precise valve positioning is required to regulate flow, pressure, or other parameters.
Q3: What materials are used in the construction of the actuator?
The actuator is typically made from durable materials such as anodized aluminum for the body and stainless steel for internal components, ensuring corrosion resistance and long service life in various environments.
Q4: What kind of control signals does the 3 Position Pneumatic Actuator support?
It supports pneumatic control signals for positioning, often combined with electrical feedback sensors for monitoring the actuator’s position in real time, enabling integration with automated control systems.
Q5: How do I install the 3 Position Pneumatic Actuator?
Installation involves mounting the actuator onto the valve or device using the provided brackets and coupling. It requires connection to a compressed air supply and control system as per the manufacturer’s guidelines to ensure proper operation.
