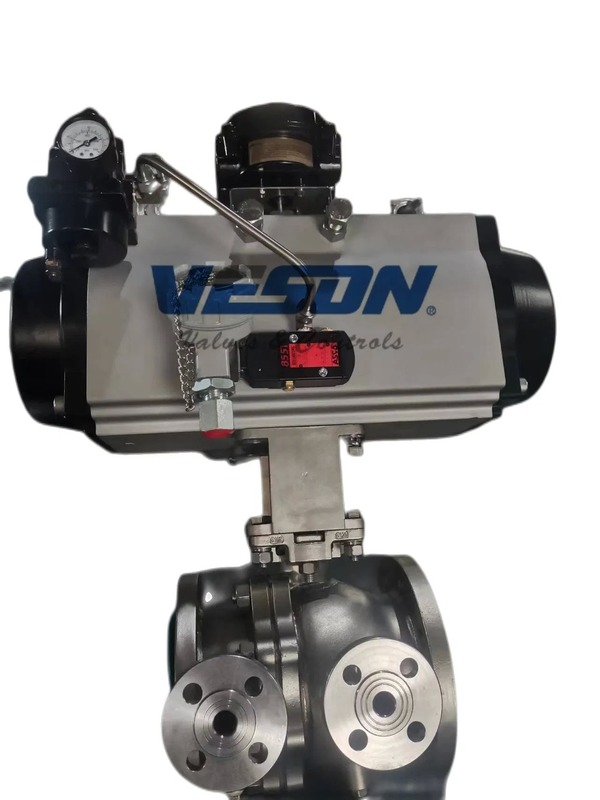

Pneumatic Jacketed Ball Valve with Pressure Rating 150#-600# Size 1/2"-24" DN15-DN600 for Steam Sulphur Applications
Datos del producto:
Pago y Envío Términos:
| Cantidad de orden mínima: | 1 |
|---|
|
Información detallada |
|||
| Tipo de canal: | Tipo directo a través de | Estructura: | Válvula de bola flotante |
|---|---|---|---|
| Tipo de válvula: | Válvula de bola flotante | Clasificación de clase: | 150# --- 600# PN16-PN110 |
| Rango de tamaño: | 1/2 "-24" DN15-DN600 | Material corporal: | Acero al carbono, acero inoxidable, acero inoxidable dúplex, bronce, Inconel |
| Conexión final: | End de brida (RF, RTJ) | Tipo de operación: | Manual, engranaje, neumático, eléctrico |
| Calificación de presión: | Clase 150 - Clase 2500 o PN 16 - PN 420 | Opciones de material: | WCB, LCB, CF3, CF8M, CF3M, A105, LF2, F304, F304L, F316, F316L, Hastelloy, Super Duplex, Inconel, C9 |
| Conservación del calor: | Sí | aislamiento frío: | Sí |
| Diámetro del caudal: | Diámetro completo | Rendimiento de fugas: | Sin fuga |
| Tipo de construcción: | Monolítico | ||
| Resaltar: | Pressure Rating 150#-600# Pneumatic Ball Valve,Size 1/2"-24" Jacketed Ball Valve,DN15-DN600 Steam Sulphur Ball Valve |
||
Descripción de producto
| PRODUCT NAME | Pneumatic Jacket ball valve |
|---|---|
| BRAND | Veson |
| ORIGIN | China |
| Packing | Plywood case |
| Class / Rating | 150#---600# PN16-PN110 |
| Size | 1/2"-24"DN15-DN600 |
| Materials | Body Material: Carbon steel, Stainless steel, Duplex stainless steel, Bronze, Inconel etc |
| Ends | Flange End (RF, RTJ) |
| Operation | Manual, Gear, Pneumatic, Electric, etc |
Jacket ball valve features excellent heat-preservation and cold-insulation properties. The full-diameter design matches pipe diameter to minimize heat loss from pipeline media. Primarily used for transporting viscous media that solidifies at normal temperatures in petroleum, chemical, metallurgical, pharmaceutical, and food industries.
The monolithic construction design provides superior sealing performance with more compact dimensions and lighter weight than traditional ball valves. The carbon steel welded jacket offers enhanced pressure resistance and durability compared to cast alternatives.
- Superior heat preservation and cold preservation capabilities
- Full-diameter design reduces media flow resistance
- Monolithic construction prevents leakage
- Compact and lightweight design
- Enhanced pressure resistance
Sizes: 1/2" - 24", DN 15 - DN 600
Pressure Rating: Class150 - Class 2500 or PN 16 - PN 420
Material of valve body: WCB, LCB, CF3, CF8M, CF3M, CF8M, A105, LF2, F304, F304L, F316, F316L, Hastelloy, Super Duplex, Inconel, C95500, Alloy 20 etc
