1" DN25 Stainless Steel T-Port Air Actuated Ball Valve with 1000 PSI Pressure Rating
Datos del producto:
Pago y Envío Términos:
| Cantidad de orden mínima: | 1 |
|---|
|
Información detallada |
|||
| Tamaño de la válvula: | 1 " DN25 | Tipo de puerto: | T-puerto |
|---|---|---|---|
| Tipo de actuación: | Actuación doble | Presión de trabajo: | 1000 psi |
| Diseño de puertos: | Puerto lleno | Material corporal: | Acero inoxidable 304/316 |
| Material de bola: | Acero inoxidable 304/316 | Material de tallo: | Acero inoxidable 304/316 |
| Asiento de pelota: | Ptfe | sello del tronco: | Triple ptfe/viton |
| Presión del aire del actuador: | 80-120 psi | Vida del ciclo del actuador: | 1 millón de ciclos |
| Diseño del actuador: | Estante y piñón | Cuerpo del actuador: | Aluminio anodizado |
| Estandarte de montaje: | ISO5211 | ||
| Resaltar: | 1" DN25 Air Actuated Ball Valve,1000 PSI Pneumatic Ball Valve,T-Port 3-Way Ball Valve |
||
Descripción de producto

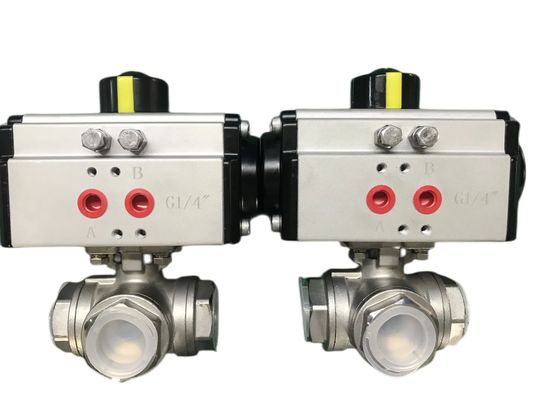

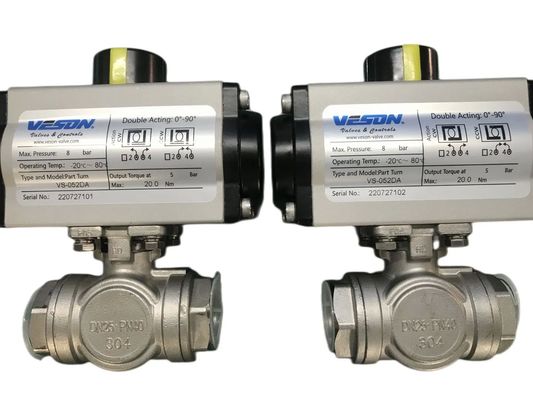

1" DN25 Air Actuated 3-Way SS T-Port Ball Valve, Double Acting
Veson Air Actuated 3-Way SS T-Port Ball Valve is a double acting stainless steel full port three way ball valve designed for use with water, air, oil, and other compatible media. This diverter valve features a T-port flow pattern without a flow shutoff position. The double acting actuators use air pressure (80-120PSI) to switch between position 1 and position 2. A high temperature valve mounting kit is available for extended temperature range or wall mounting applications.
Advantages over other valve types include higher flow rates, increased pressure and temperature tolerance, wider media compatibility, straight through flow path, reduced water hammer, and suitability for hazardous environments.
Ball Valve Standard Features
- 1000 PSI working pressure
- Full port design
- Stainless steel body (304 or 316), ball and stem
- Four ball seat design allows full pressure at any port
- PTFE ball seats for extended cycle life
- Triple PTFE/Viton stem seal design, live loaded and adjustable
- Valve direct mounts to actuator per ISO5211
Pneumatic Actuator Standard Features
- Extended cycle life (1 million cycles)
- Rack & pinion design
- Highly visible valve position indicator
- Dry or lubricated pilot air
- Factory lubricated for normal life
- Anodized aluminum body with epoxy-polyester covers
- Namur & ISO mounting
