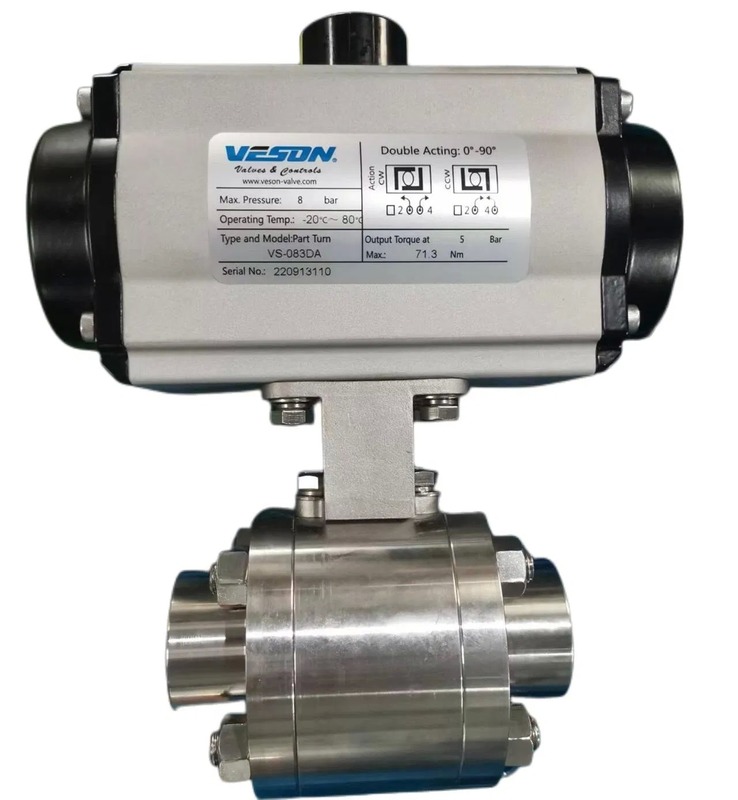

3 Piece Pneumatic Ball Valve with ASME Class 800 and ASME Class 1500 Forged Steel Floating Ball Valve
Datos del producto:
Pago y Envío Términos:
| Cantidad de orden mínima: | 1 |
|---|
|
Información detallada |
|||
| Tipo de canal: | Tipo directo a través de | Tipo de estructura: | Válvula de bola flotante |
|---|---|---|---|
| Tipo de válvula: | Válvula de bola flotante | Tipo de orificio: | Orificio regular (reducido), diámetro completo |
| Clase de presión: | ASME Clase 800, 1500 | Tipo de conexión: | Extremo atornillado o roscado |
| Rango de tamaño: | 15 mm a 50 mm | Material corporal: | ASTM A 105, ASTM A 182 F 304, ASTM A 182 F 316, ASTM A 182 F 304L, ASTM A 182 F 316L |
| Material de bola: | ASTM A 351 Gr. Cf 8 / cf 8m, ASTM A 182 F304 / F316, ASTM A 351 Gr. CF 3 / CF 3M, ASTM A 182 F304L / | Material de tallo: | ASTM A 276 T (304 /316, 304L / 316L, 410) |
| Material de asiento de bola: | PTFE Virgin / 25% llena de vidrio, vista / Delrin / Grafoil | Material de embalaje de glándulas: | PTFE Virgin / 25% llena de vidrio, Grafoil |
| Material de semental y nueces: | ASTM A 193 gr. B7 / A 194 Gr. 2H, SS 304 / SS 316 | Tipo de operación: | Palanca manual, actuador neumático, actuador eléctrico |
| Material de asiento: | Ptfe, Peek, Delrin, Grafoil | ||
| Resaltar: | 3 Piece Pneumatic Ball Valve,ASME Class 800 Floating Ball Valve,ASME Class 1500 Forged Ball Valve |
||
Descripción de producto
Pneumatic Actuator 3 Piece Floating Ball Valves Forged Ball Valve with Pneumatic Actuator
Our Veson Two Way Floating Ball Three Piece Forged Steel Ball Valve is available in Regular (Reduced) Bore and Full Bore configurations. Designed for demanding applications, it meets ASME Class 800 and 1500 standards with screwed or threaded end connections in sizes ranging from 15 mm to 50 mm.
Material Options
Available in multiple high-performance materials including ASTM A 105 (Forged Carbon Steel), ASTM A 182 F 304/304L (Forged Stainless Steel 304/304L), and ASTM A 182 F 316/316L (Forged Stainless Steel 316/316L). Operation options include Manual Lever, Pneumatic Actuator, and Electrical Actuator.
Key Features
- Premium quality forged body construction
- Heavy-duty, rugged design for industrial applications
- Extended service life with smooth operation
- Low operating torque requirements
- Positive shut-off capability
- No lubrication required for maintenance
Design & Test Specifications
| Component | Material Specifications |
|---|---|
| Body & End Piece |
ASTM A 105 - Forged Carbon Steel ASTM A 182 F 304/304L - Forged Stainless Steel ASTM A 182 F 316/316L - Forged Stainless Steel ASTM A 182 F 11/F 22 - Alloy Steel |
| Ball |
ASTM A 351 GR. CF 8/CF 8M (SS 304/SS 316) ASTM A 182 F304/F316 (SS 304/SS 316) ASTM A 351 GR. CF 3/CF 3M (SS 304L/SS 316L) ASTM A 182 F304L/F316L (SS 304L/SS 316L) |
| Stem |
304/316 (SS 304/SS 316) - ASTM A 276 T 304L/316L (SS 304L/SS 316L) - ASTM A 276 T ASTM A 276 T - 410 (SS 410) |
| Ball Seat & Body Seal |
PTFE Virgin/25% Glass Filled - GFT/Carbon Filled - CFT PEEK/Delrin/Grafoil - Graphite Ring |
| Gland Packing |
PTFE Virgin/25% Glass Filled - GFT/Carbon Filled - CFT Grafoil - Graphite Ring |
| Stud & Nut |
ASTM A 193 GR. B7/A 194 GR. 2H S.S. 304/S.S. 316 |
