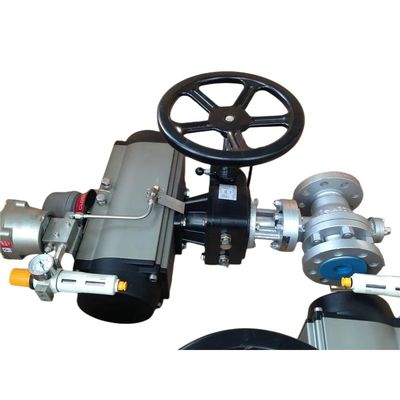

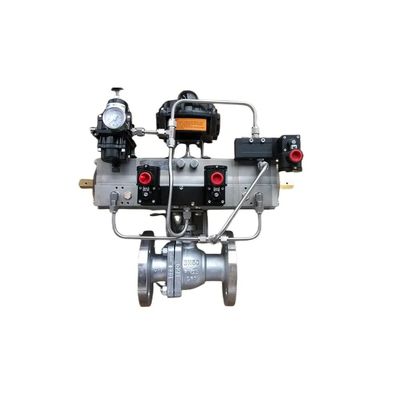

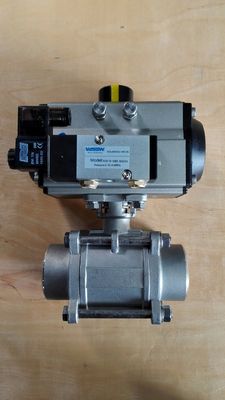

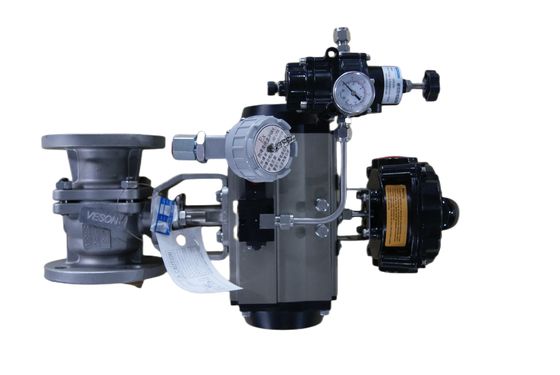

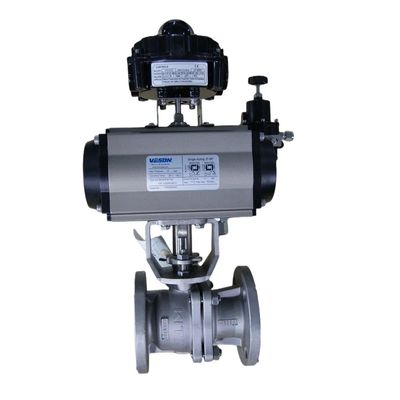

Pneumatic Ball Valve with ASME B16.34 Standard, ISO5211 Mounting, and 1 Million Cycles for Industrial Usage
Datos del producto:
Pago y Envío Términos:
| Cantidad de orden mínima: | 1 |
|---|
|
Información detallada |
|||
| Modelo No.: | VS-240SR08-FO | Formulario de conexión: | Brida |
|---|---|---|---|
| Modo de conducción: | Neumático | Presión nominal: | Jis10-20k |
| Canal: | Tipo directo a través de | Estructura: | Válvula de bola flotante |
| Tipo: | Válvula de bola flotante | Función: | Válvula de descenso |
| Temperatura: | Temperatura normal | Dimensión de la brida final: | ASME B16.5 |
| Especificación: | 1 pulgada-12 pulgadas | Material corporal: | 316 acero inoxidable |
| Material de bola: | 316 acero inoxidable | Material de tallo: | 316 acero inoxidable |
| Presión de aire: | 80-120 psi | ||
| Resaltar: | ASME B16.34 Pneumatic Ball Valve,ISO5211 Mounting Flanged Ball Valve,1 Million Cycles Air Actuated Ball Valve |
||
Descripción de producto
Pneumatic Actuated Flanged Ball Valve
Flanged Air Pressure Control System with Horizontal Pneumatic Actuators
Veson air actuated ANSI 150# stainless steel flanged ball valves are engineered for general chemical and industrial applications. Featuring a full port 2-piece investment cast design, these valves directly mount to actuators with standard ISO5211 mounting pads.
Double acting actuators operate with air pressure signals (80-120 PSI) for valve opening and closing. Available with high temperature valve mounting kits for extended temperature ranges or wall mounting applications. Valves can be mounted in any orientation and are tested per API 598 standards.
Ball Valve Standard Features
- Full port design for unrestricted flow
- 316 stainless steel body, ball and stem
- Blow out proof stem
- RTFE ball seats extend cycle life
- Triple RTFE/Viton stem seal design, live loaded and adjustable
- ISO5211 direct mounting
- Anti-static design
Pneumatic Actuator Standard Features
- Extended cycle life (1 million cycles)
- Quarter turn rack & pinion design
- Highly visible valve position indicator
- Compatible with dry or lubricated pilot air
- Factory lubricated for normal service life
- Anodized aluminum body with epoxy-polyester coated end covers
- Namur & ISO mounting compatibility
