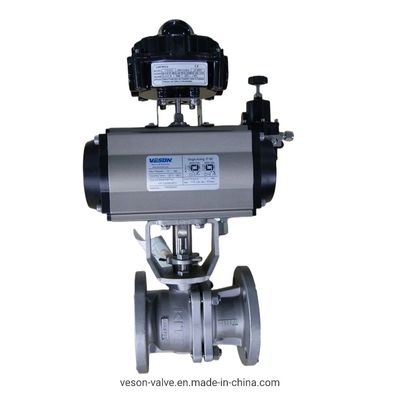

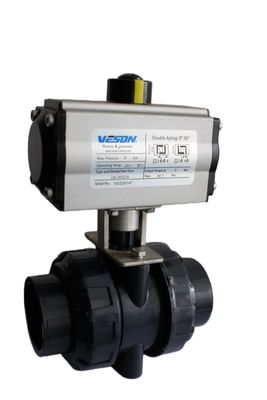

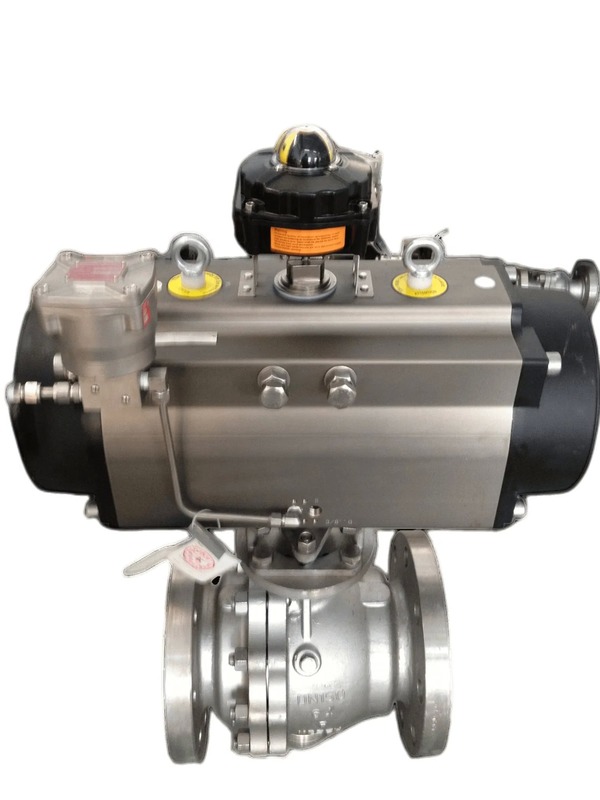

Pneumatic Actuator with ISO5211 Standard and PN1.0-32.0MPa Pressure Range for 1 inch-12 inch Automated Ball Valve
Datos del producto:
Pago y Envío Términos:
| Cantidad de orden mínima: | 1 |
|---|
|
Información detallada |
|||
| Formulario de conexión: | Brida | Modo de conducción: | Neumático |
|---|---|---|---|
| Presión nominal: | PN1.0-32.0MPA | Tipo de canal: | Recto a través |
| Estructura de la válvula: | Bola de flotación | Tipo de válvula: | Válvula de bola flotante |
| Rango de temperatura: | Temperatura normal | Rango de tamaño: | 1 pulgada-12 pulgadas |
| Capacidad de producción: | 50000pc/y | Sellos de eje: | Junta tórica dual |
| Material de buje: | Bronce impregnado de petróleo | Material del recinto: | 316 acero inoxidable |
| Estandarte de montaje: | ISO5211 | Opciones de salida: | 4-20 mA continuo |
| Opciones de cambio: | Proximidad de estado sólido, mecánico | ||
| Resaltar: | ISO5211 Standard Pneumatic Actuator,PN1.0-32.0MPa Pneumatic Ball Valve,1 inch-12 inch Automated Valve |
||
Descripción de producto

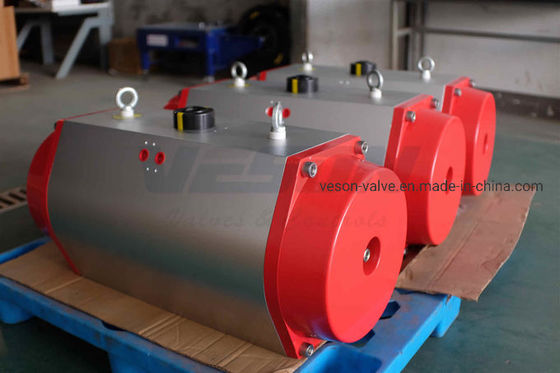

Pneumatic Actuator with Monitor for Automated On/Off Valve Position
This advanced pneumatic actuator features visual position indication and controller signaling for automated valve operations in demanding industrial environments.
Key Features
- Multiple switching & communication options including solid state proximity switches, mechanical switches, and 4-20mA continuous outputs
- Robust enclosures designed for harsh process environments
- Quick-access enclosure design for easy maintenance
- Precision quick-set cams for accurate positioning
- Compact design with integrated visual position indicators
- Dual shaft O-ring seals for enhanced protection
- Oil-impregnated bronze bushing prevents shaft seizure and ensures smooth operation
- Comprehensive sealing system protects against both external corrosives and internal contaminants
Industrial Applications
- Automated On/Off valves in hazardous process environments
- Corrosive and washdown process areas
- Food and beverage processing
- Chemical processing plants
- Pharmaceutical and biotech facilities
- Agricultural processing
- Oil and gas operations
- Marine and offshore installations
Engineered for Extreme Conditions
The explosion-proof VSL valve monitoring system is available with a 316 stainless steel enclosure, offering exceptional durability for corrosive, heavy washdown, and marine environments. Compatible with quarter-turn actuators, manual operators, linear operators, and positioners using standard stainless steel mounting systems.
The VSL system provides reliable valve position monitoring with clear visual indicators and controller signaling for all process areas.
